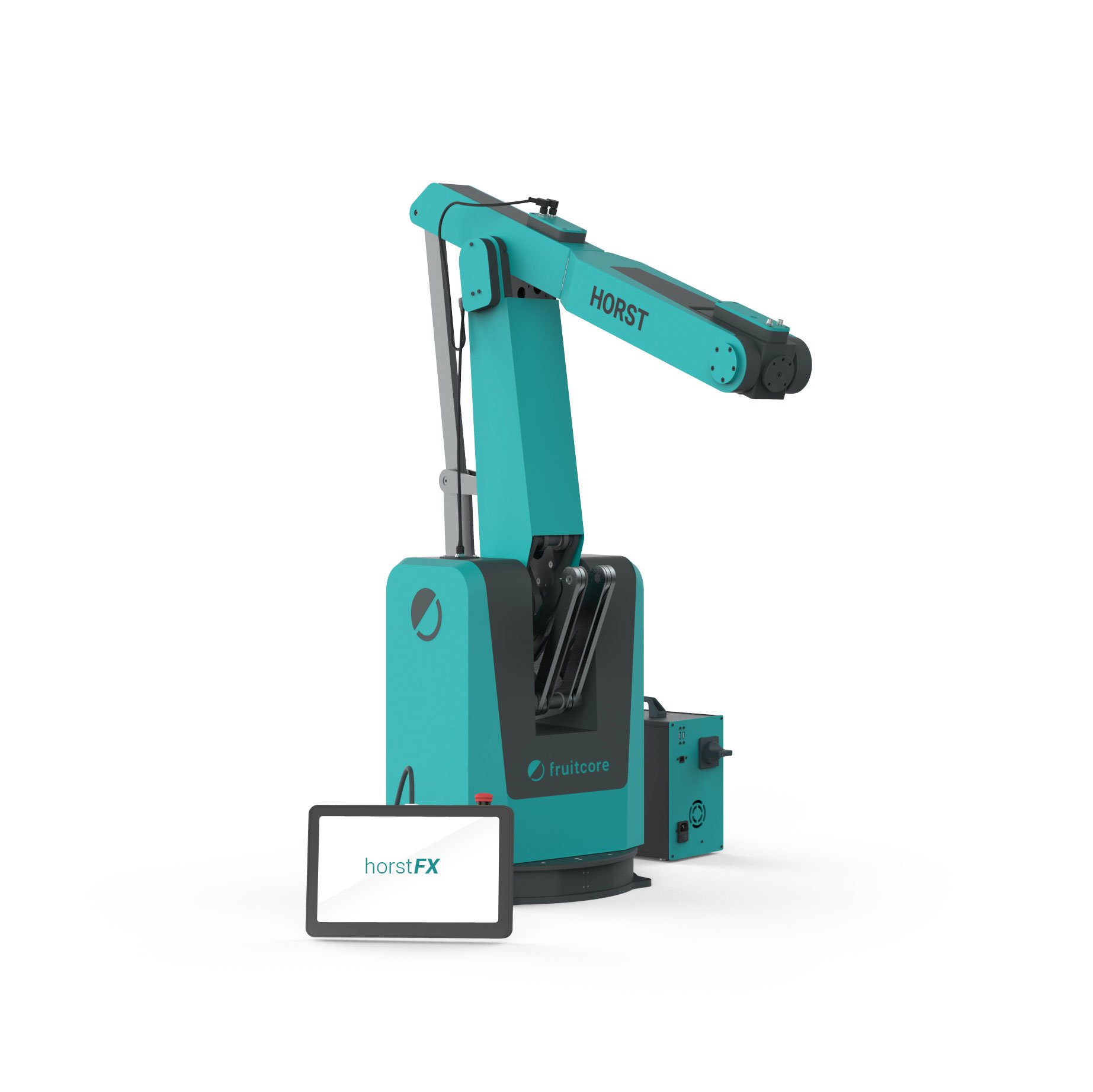

HORST1400

Easy to get.
Even easier
to handle.

Take it easy: Take HORST

Maximum payload

10 kg

Range

1400 mm

Repeatability

+/- 0,1 mm

HORST has
what it takes.

Payload, dynamics and range.

Top speed of 5,3 m/s.
Nice and quick.

HORST can work fast: Thanks to its design, HORST’s drive performance is highly efficient and its axis speeds are surprisingly fast. With a speed of 5,3 meters per second, this industrial robot operates at high speed at the tool center point (TCP).

1400 mm range.
Powerful.

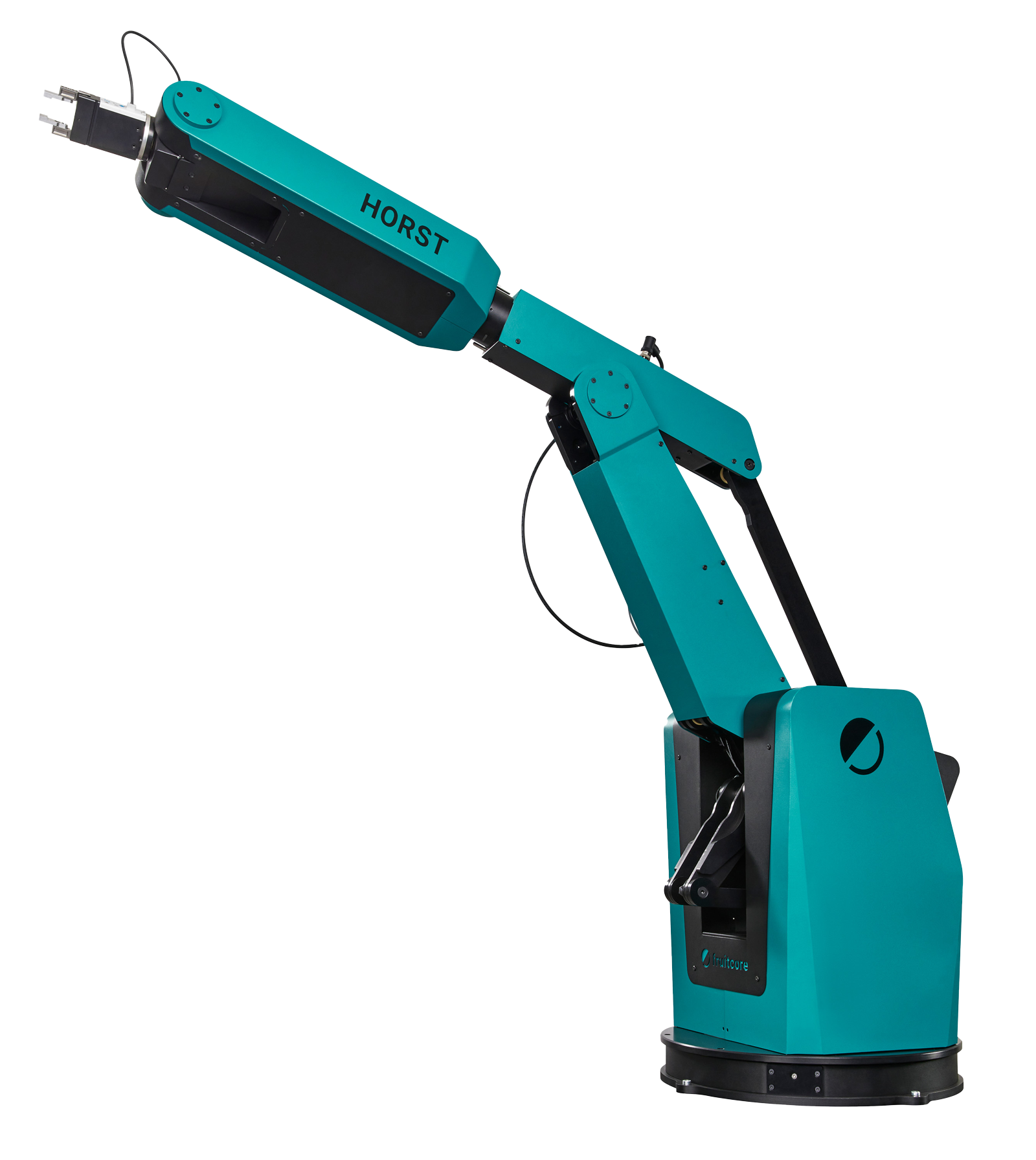

With its four-bar linkages, our 6-axis industrial robot HORST is based on an innovative drive concept. This makes it very powerful and provides it with an optimum ratio of range and payload.

Up to 10 kg payload.
HORST1400 can take the load.

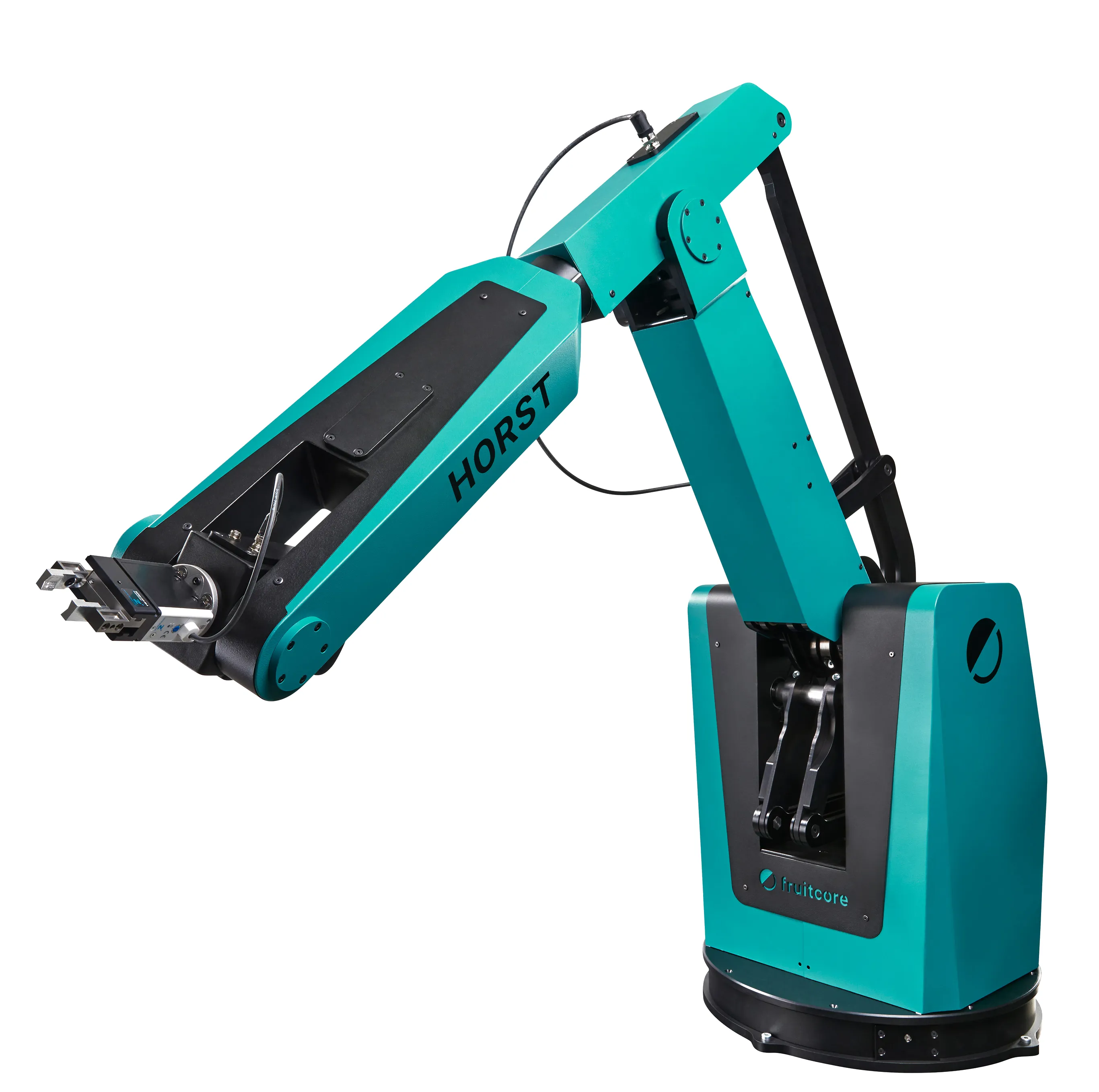

HORST1400 can handle loads of up to 10 kilograms. The 6-axis industrial robot has an installation area measuring of 454 x 454 m. HORST1400 is our robot for part handling in a larger radius. In the field of logistics, handling plastic or metal parts – industrial robot HORST1400 is productive in all sectors and applications.

+/- 0.1 mm repeatability.
Exact to a T.

HORST is very particular about accuracy. Precise positioning is a matter of course for our industrial robot. The combination of serial and parallel structures results in a high level of rigidity and an excellent distribution of mass. This is why working with a high level of absolute and repeatability comes naturally to our industrial robot.

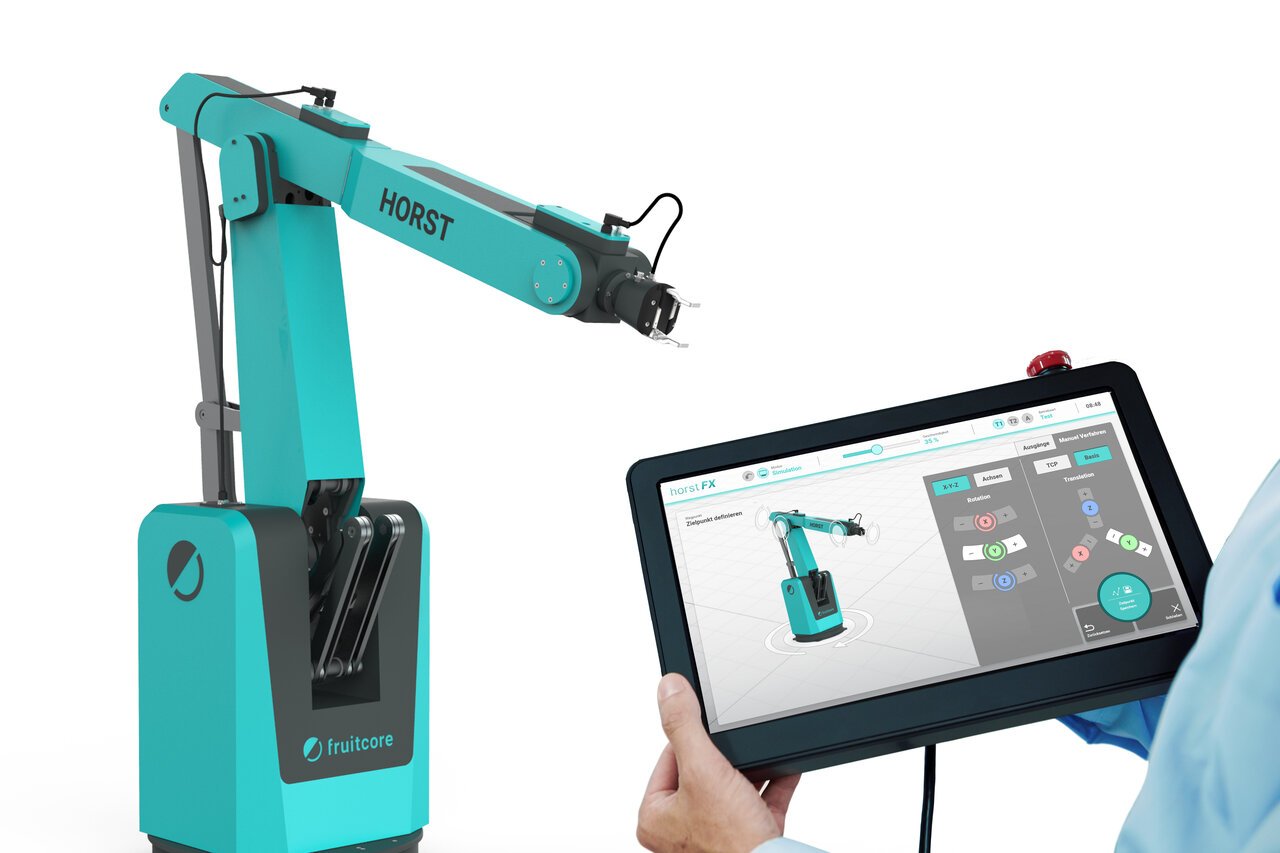

horstFX

The smart way to operate HORST.

Plug & Play
Plug in and go

< 30 min.
for one application

High-resolution operating panel
with emergency stop and enabling switch

horstCONTROL

Simple and powerful.

Fieldbus
Modbus/TCP Profinet

I/O connections on switch cabinet
16 digital inputs, 14 digital outputs. Enhancements possible.

Web-Interface via HTTP
TCP/IP 100-Mbit/s Ethernet

Schaltschrank horstCONTROL - fruitcore robotics

horstVISION

The smart interface
for camera guided robotics.

Take it easy: Take HORST.



What is horstVISION?
All industrial robots of the HORST series can optionally be equipped with 2D- or 3D-camera systems from multiple manufacturers.
horstVISION is the interface that supports the intuitive and easy integration of the right camera for you. We offer you a direct and easy connection to the camera as well as sample programs and a quick start for your camera guided robot. Among the camera systems commonly used in the industry, we’ll find the most suitable configuration with stationary or mobile camera and make the integration with horstVISION very easy. Making HORST even smarter!

Industrieroboter HORST - horstVISION - fruitcore robotics

HORST900 in Action

In use at babyplast

In use at the Zeppelin Gewerbeschule

In use at Cleaning Solutions

References

Logo cretec- fruitcore robotics
Logo allit- fruitcore robotics
Logo Huber- fruitcore robotics

Customer Feedback

HORST is an innovative
robot solution. The user interface is very easy.

Thomas Burger, managing
director at SBS-Feintechnik

Sectors & Applications

HORST is a 6-axis industrial robot with a universal application spectrum. In other words: HORST is a comprehensive robot system with a unique performance
spectrum for a variety of industrial applications. Equipped with grippers, suction cups and other tools, HORST adapts to your requirements. After all, it is your
HORST for any eventuality.

Let’s get started!

Everyone just likes HORST

Maximum payload
10 kg

Max. TCP speed
5,3 m/s

Range
1400 mm

Picks per min.
50

Repeatability
+/- 0,1 mm

Acceleration
2,8 m/s²
