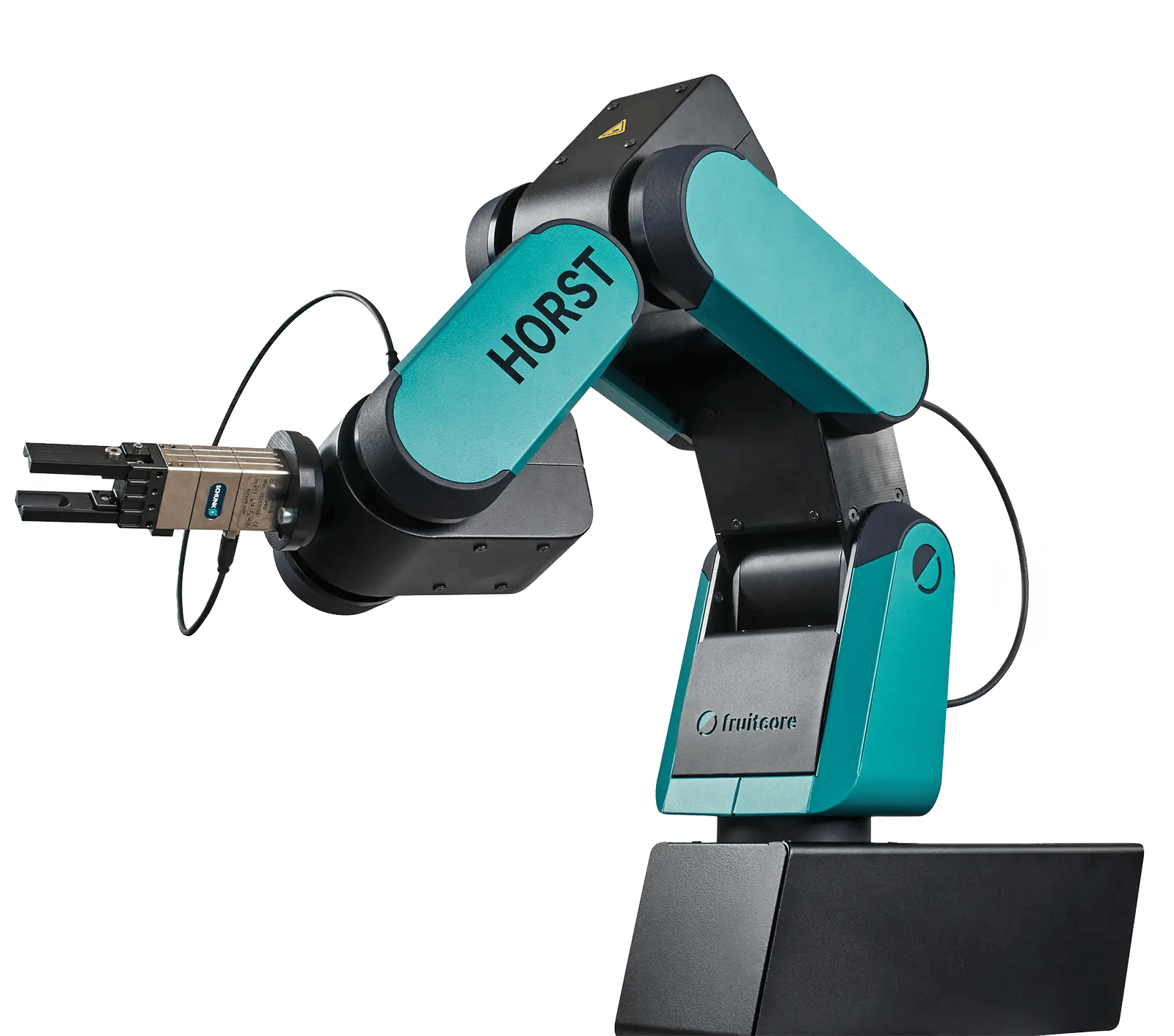

HORST600

Easy to get.
Even easier
to handle.

Take it easy:
Take HORST.

Maximum payload

3 kg

Range

584 mm

Repeatability

+/- 0,05 mm

HORST has
what it takes.

Payload, dynamics and range.

Top speed of
Nice and quick.

HORST can work fast: Thanks to its design, HORST’s drive performance is highly efficient and its axis speeds are surprisingly fast.

584 mm range.
Powerful.

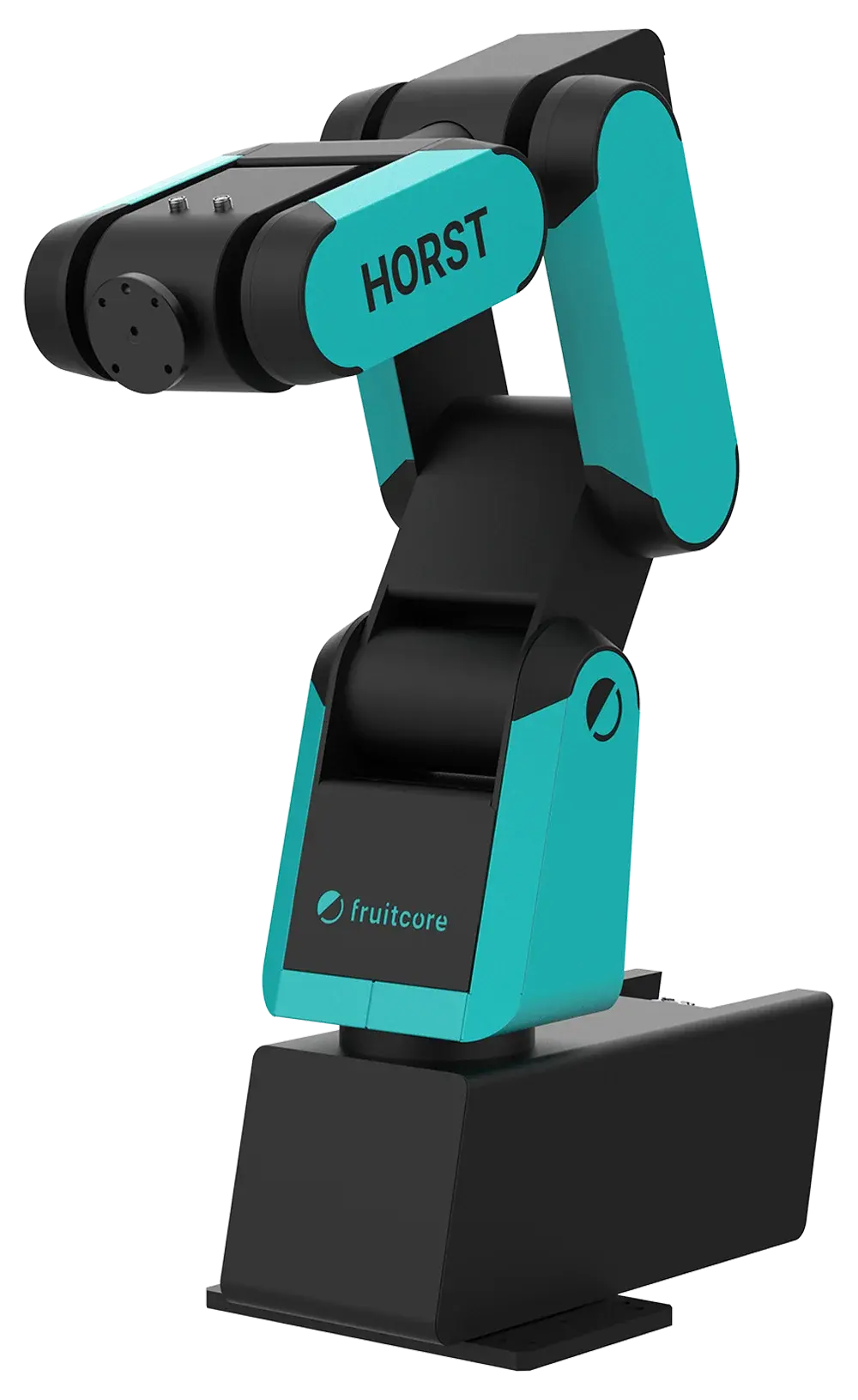

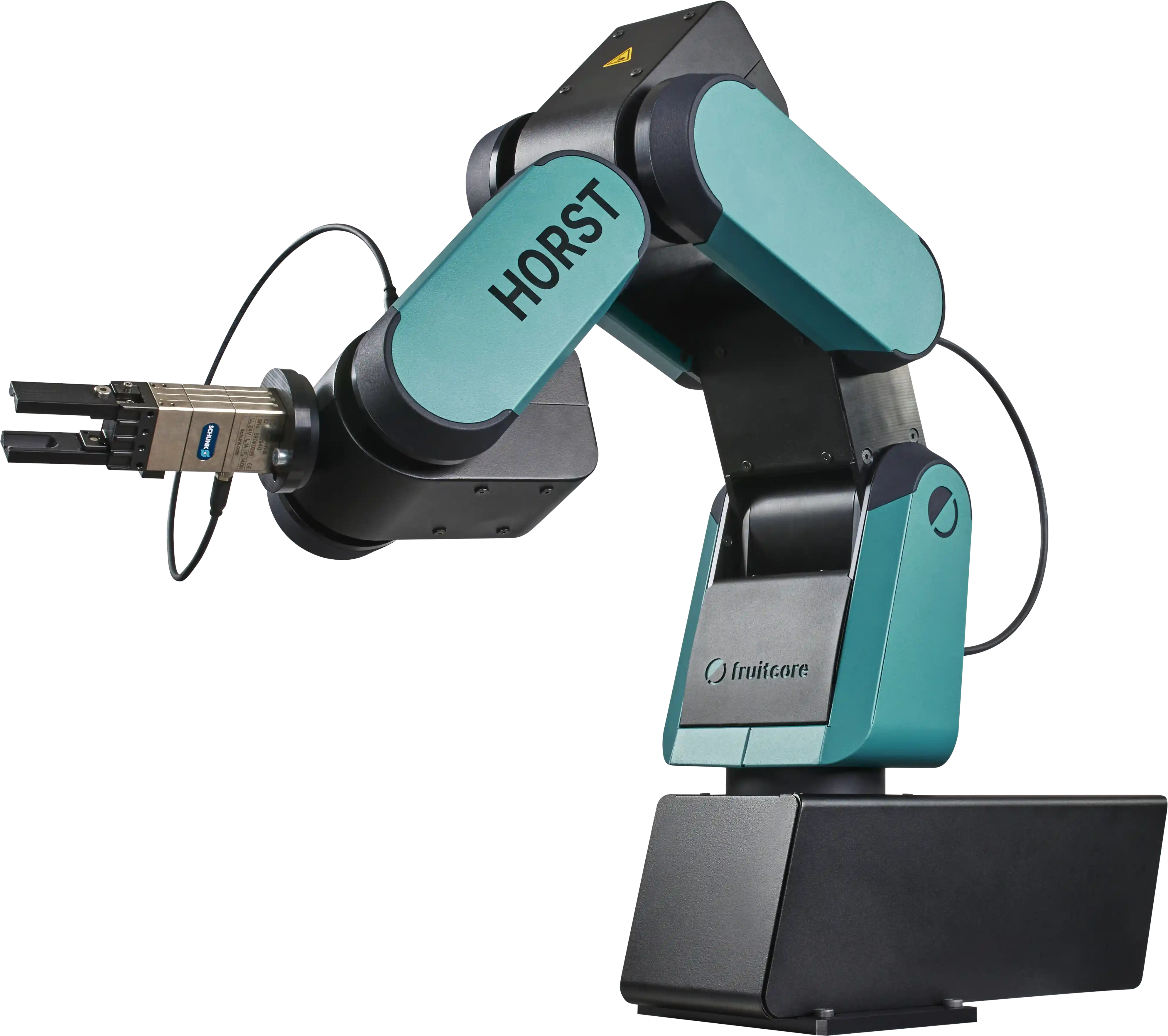

The industrial robot HORST600 impresses with its well thought-out kinematics, as well as with its small space requirement and at the same time large working space with a maximum range of 584 mm. HORST600 provides an optimum ratio of range and payload.

Up to 3 kg payload.
HORST can take the load.

HORST600 can handle loads of up to 3 kilograms. With an installation area measuring 382 x 200 mm, the compact industrial robot can be used for a variety of applications.
Do more — with HORST.

+/- 0.05 mm repeatability.
Exact to a T.

HORST is very particular about accuracy. Precise positioning is a matter of course for our industrial robot. In terms of precision HORST600 is in no way inferior to its big robot-brothers. HORST600 is working easily with a high level of absolute and repeatability.

horstFX

The smart way to operate HORST.

Plug & Play
Plug in and go

< 30 min.
for one application

High-resolution operating panel
with emergency stop and enabling switch

horstCONTROL

Simple and powerful.

Fieldbus
Modbus/TCP Profinet

I/O connections on switch cabinet
16 digital inputs, 14 digital outputs. Enhancements possible.

Web-Interface via HTTP
TCP/IP 100-Mbit/s Ethernet

Schaltschrank horstCONTROL - fruitcore robotics

horstVISION

The smart interface
for camera guided robotics.

Take it easy:
Take HORST.



What is horstVISION?
All industrial robots of the HORST series can optionally be equipped with 2D- or 3D-camera systems from multiple manufacturers.
horstVISION is the interface that supports the intuitive and easy integration of the right camera for you. We offer you a direct and easy connection to the camera as well as sample programs and a quick start for your camera guided robot. Among the camera systems commonly used in the industry, we’ll find the most suitable configuration with stationary or mobile camera and make the integration with horstVISION very easy. Making HORST even smarter!

Industrieroboter HORST - horstVISION - fruitcore robotics

HORST900 in Action

In use at add’n solutions

In use at babyplast

In use at Cleaning Solutions

References

Logo cretec- fruitcore robotics
Logo allit- fruitcore robotics
Logo Huber- fruitcore robotics

Customer Feedback

HORST is an innovative
robot solution. The user interface is very easy.

Thomas Burger, managing
director at SBS-Feintechnik

Sectors & Applications

HORST is a 6-axis industrial robot with a universal application spectrum. In other words: HORST is a comprehensive robot system with a unique performance
spectrum for a variety of industrial applications. Equipped with grippers, suction cups and other tools, HORST adapts to your requirements. After all, it is your
HORST for any eventuality.

Let’s get started!

Everyone just likes HORST

Maximum payload
3 kg

Range
584 mm

Repeatability
+/- 0,05 mm

Award handling 2019 - fruitcore robotics
Award Best of Industry 2020 - fruitcore robotics
Award Focus Open Silver 2020 - fruitcore robotics
Award Focus Open Gold 2020 - fruitcore robotics
Award Leserpreis Handling Award 2020 - fruitcore robotics
